Commercial2014·New Orleans, LA
Maison Pierre Hotel
Project Scope

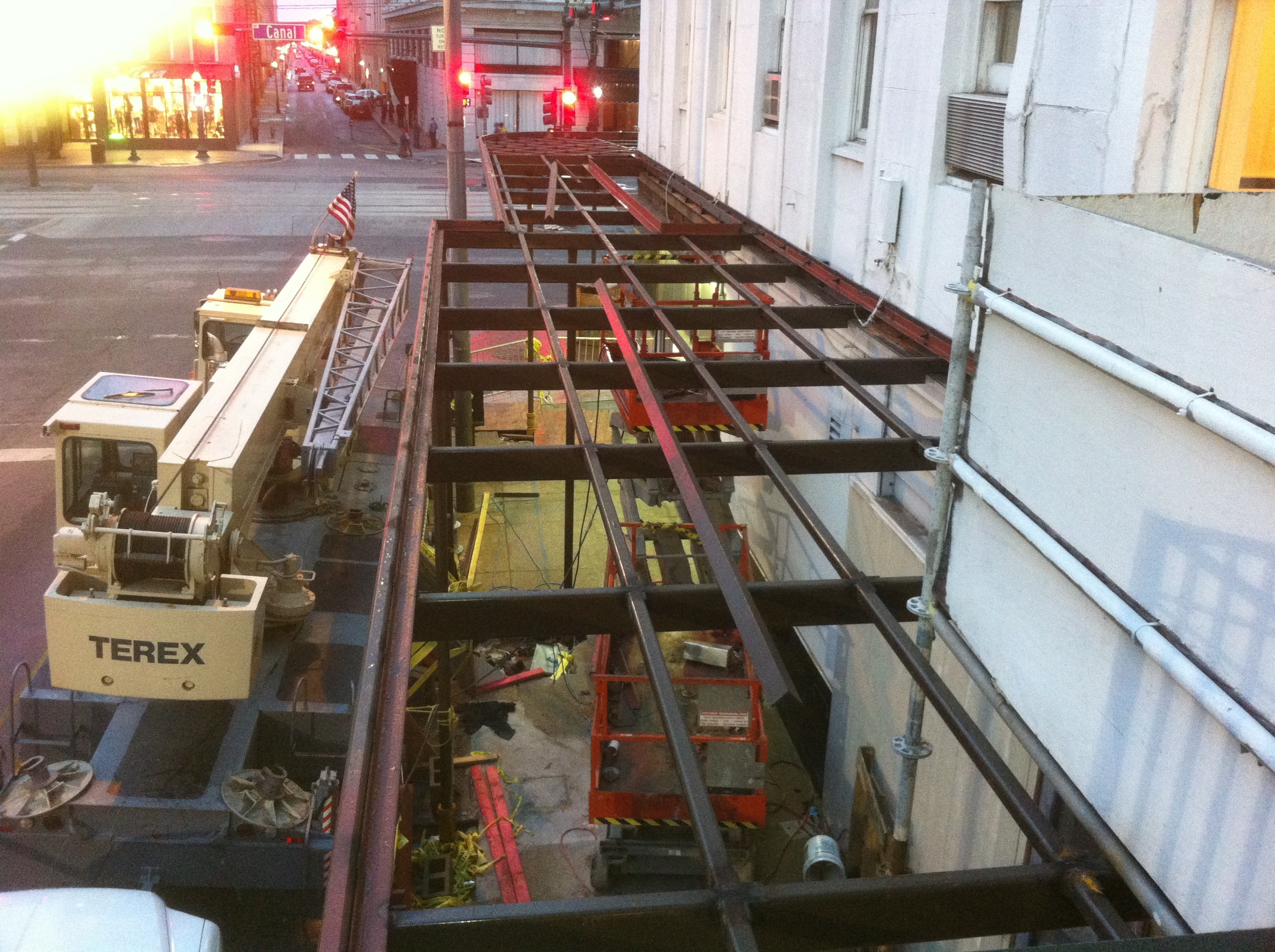

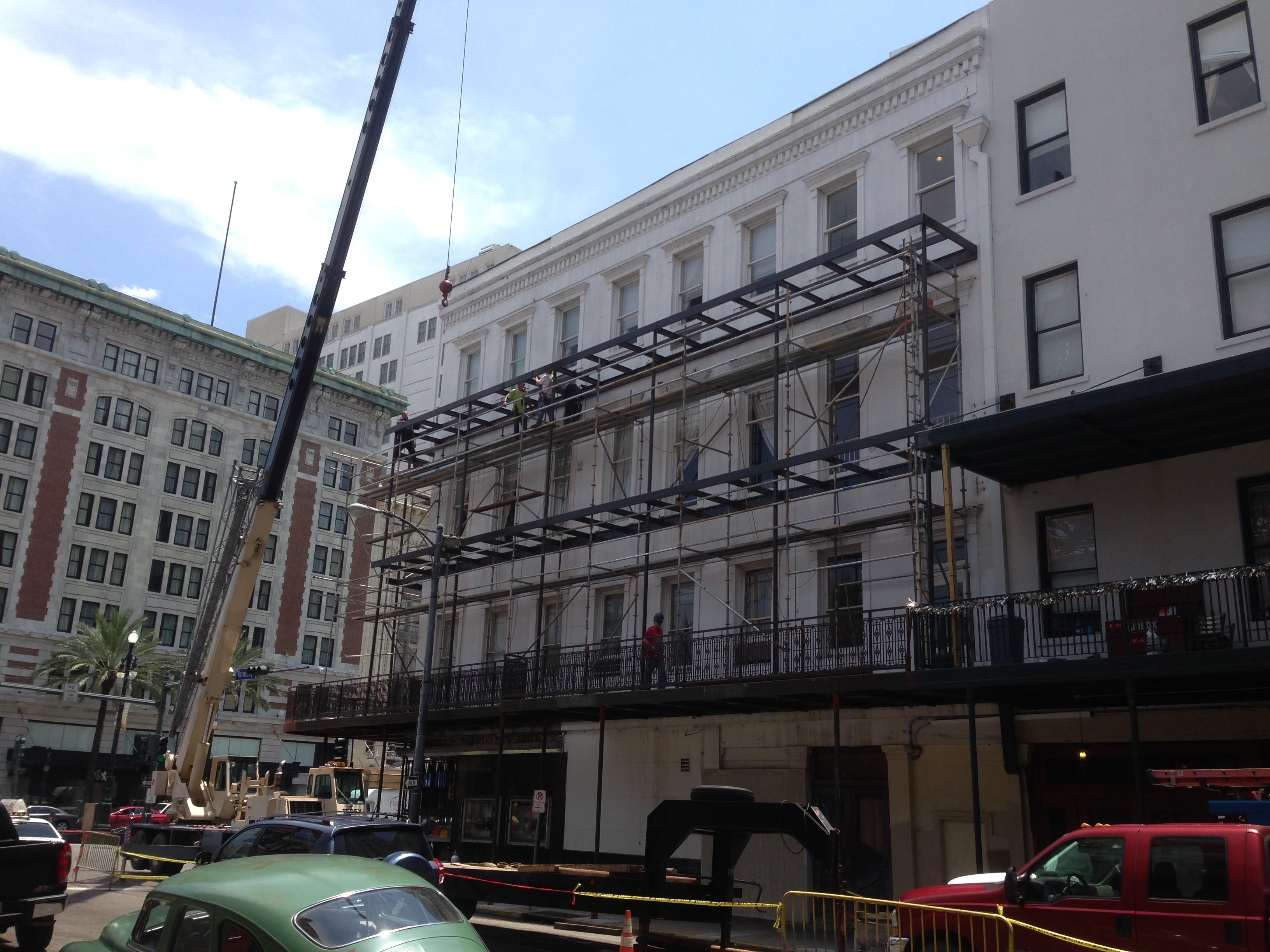

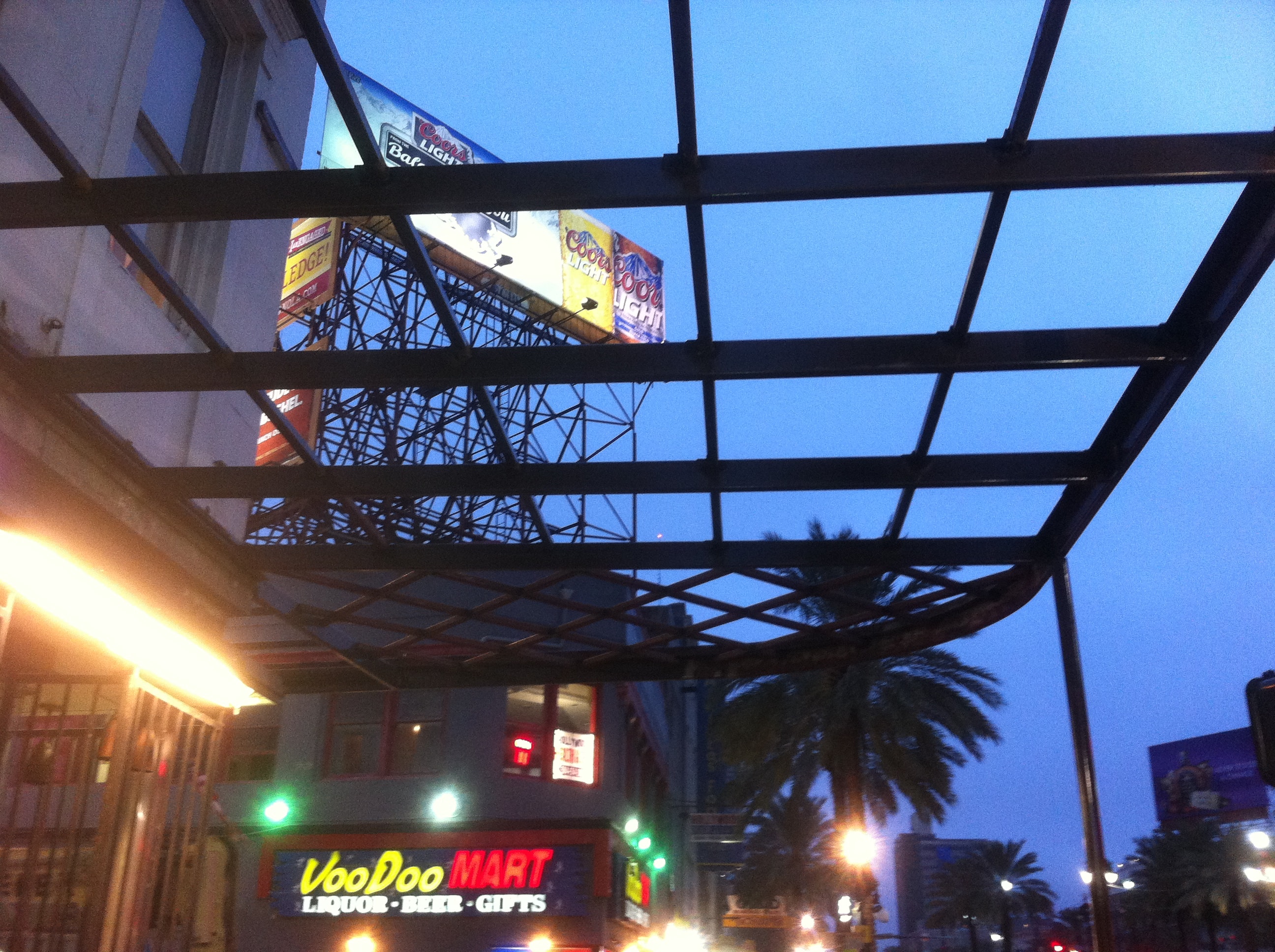

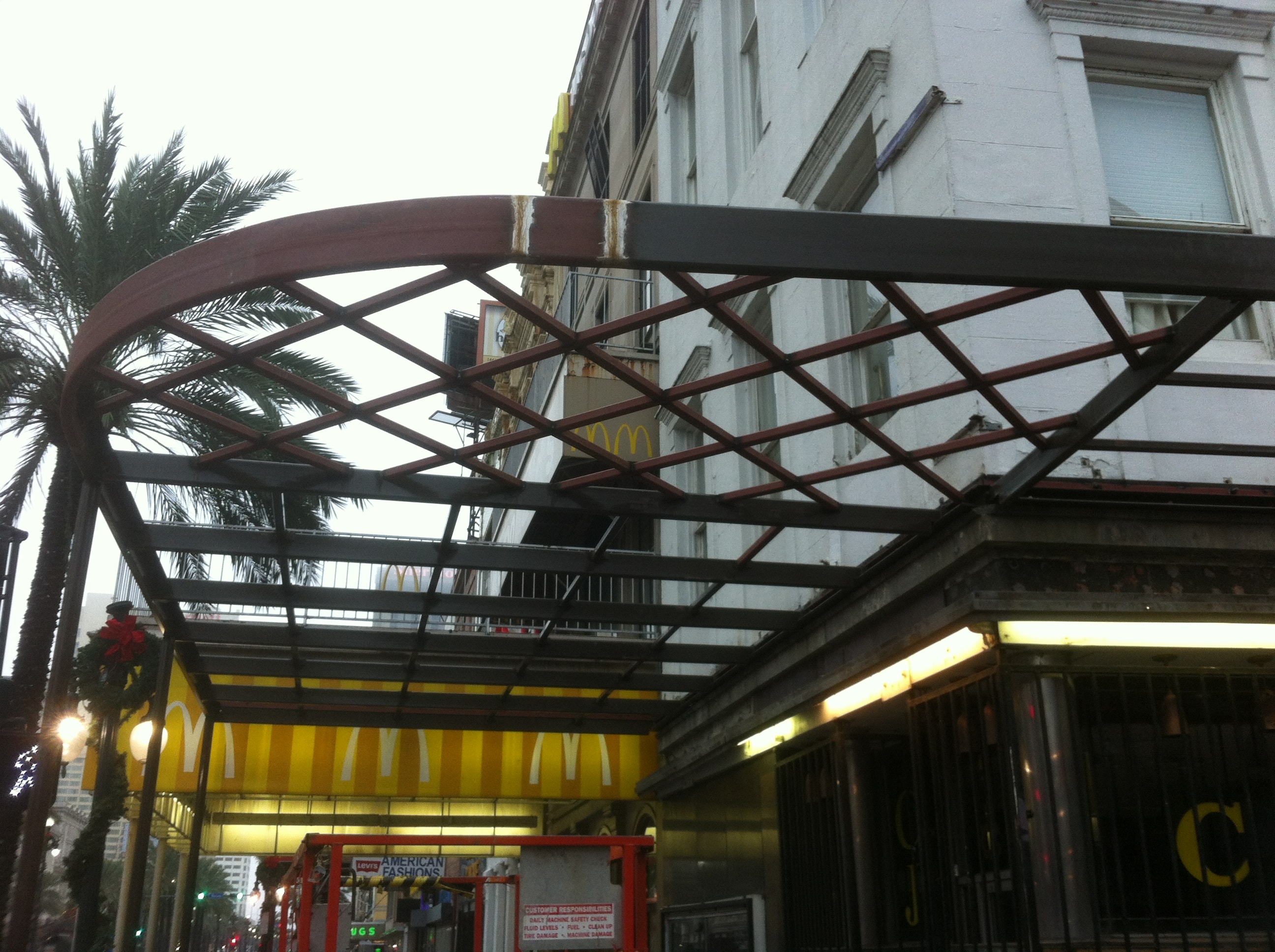

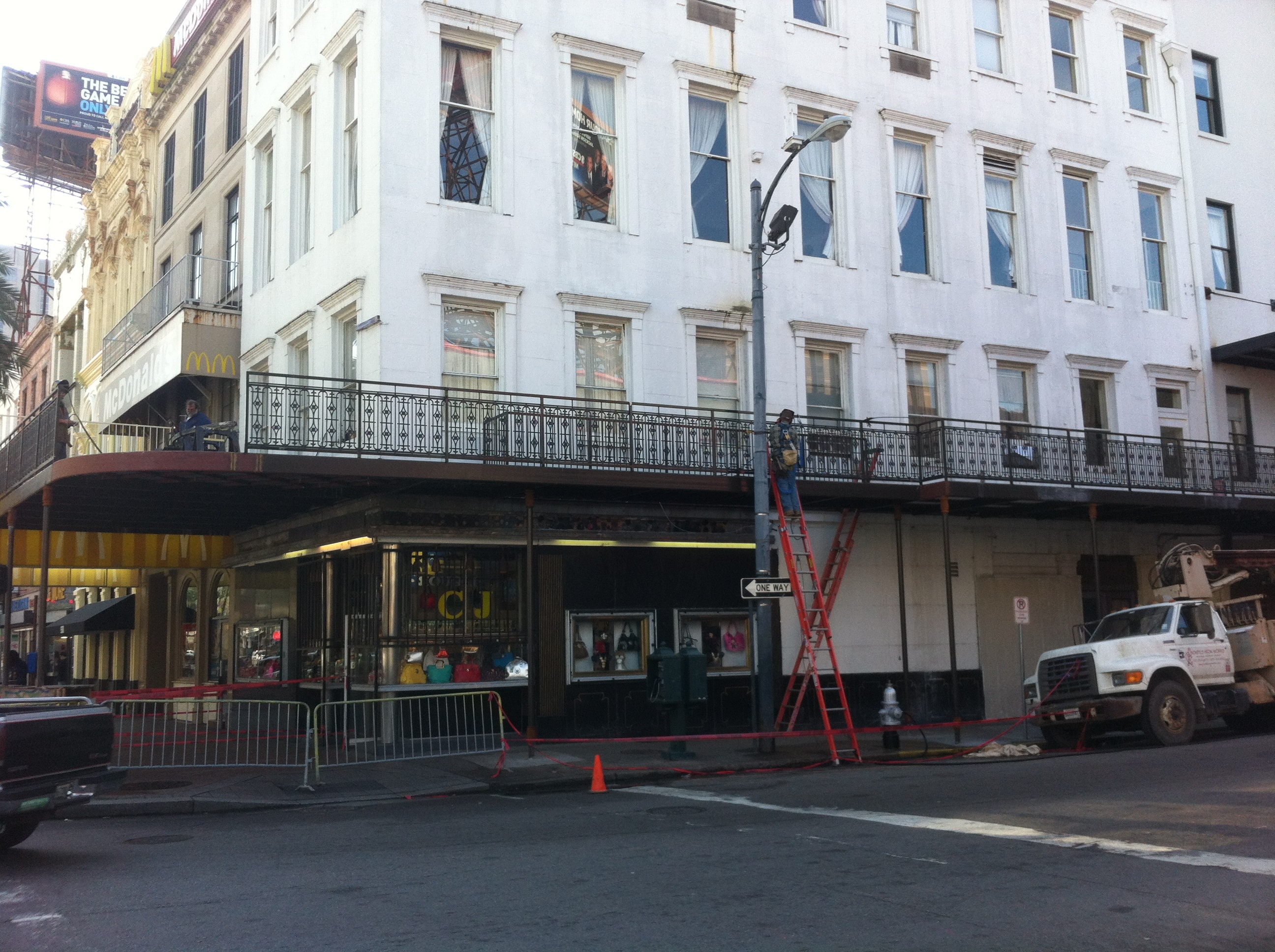

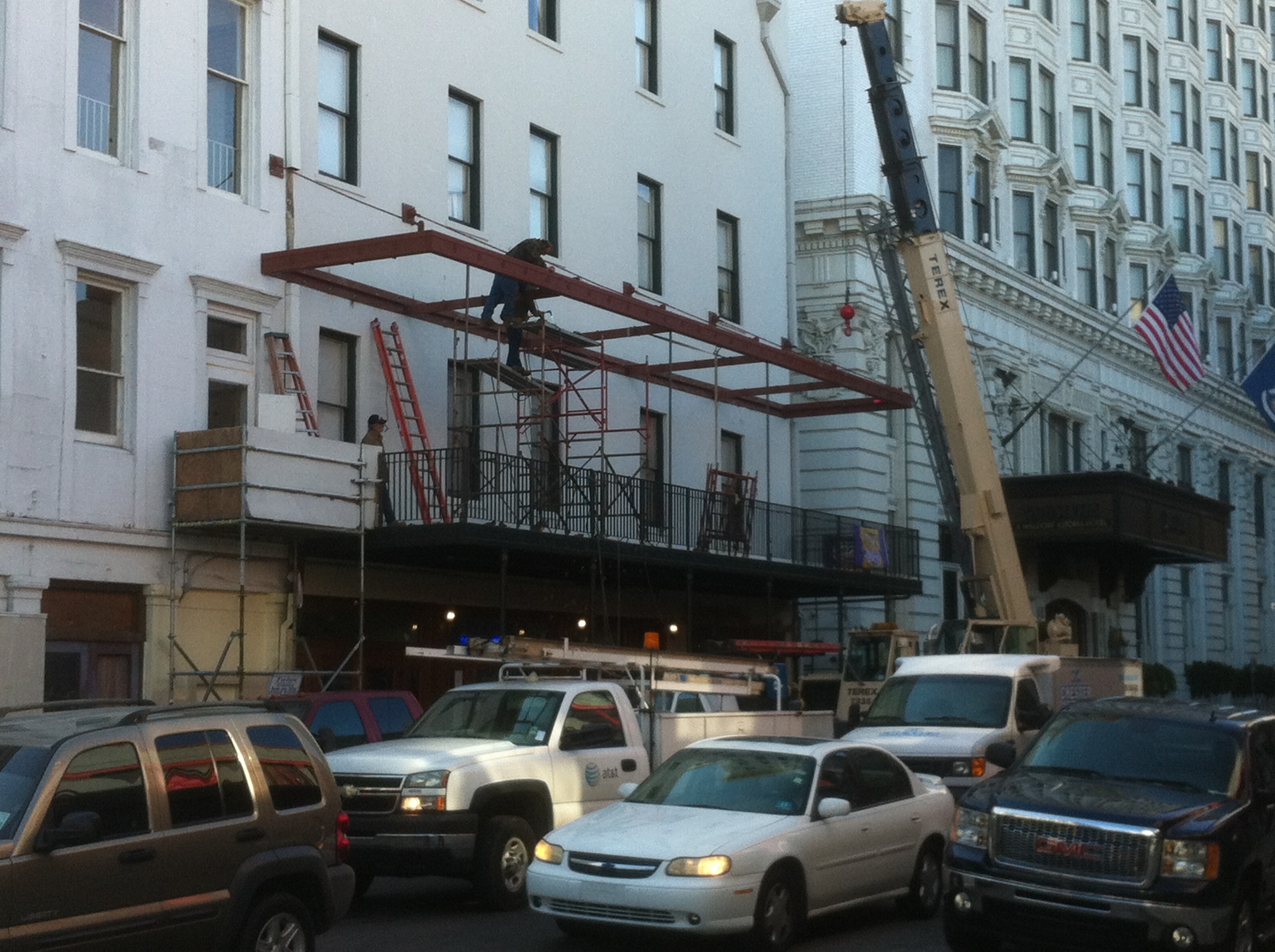

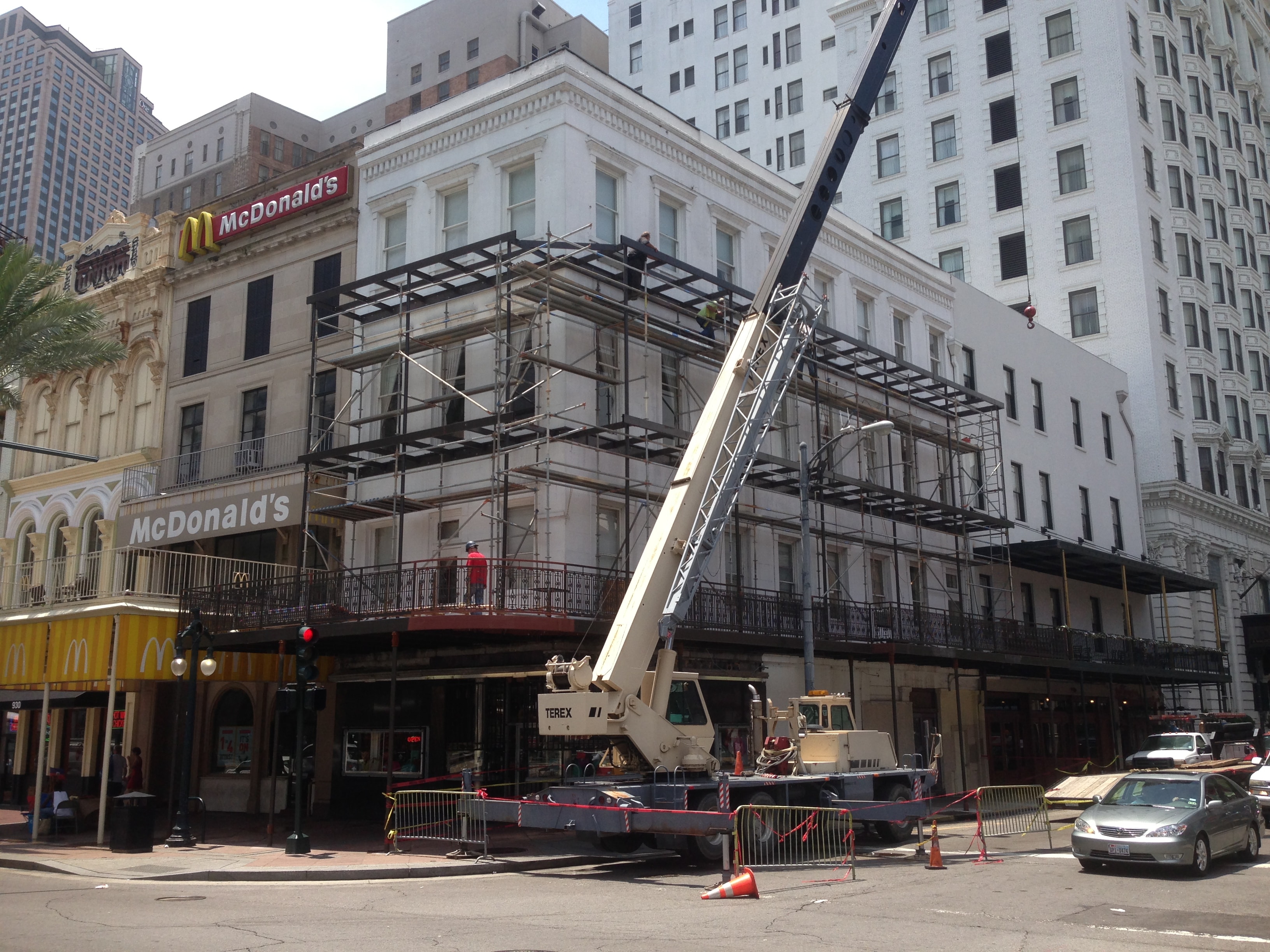

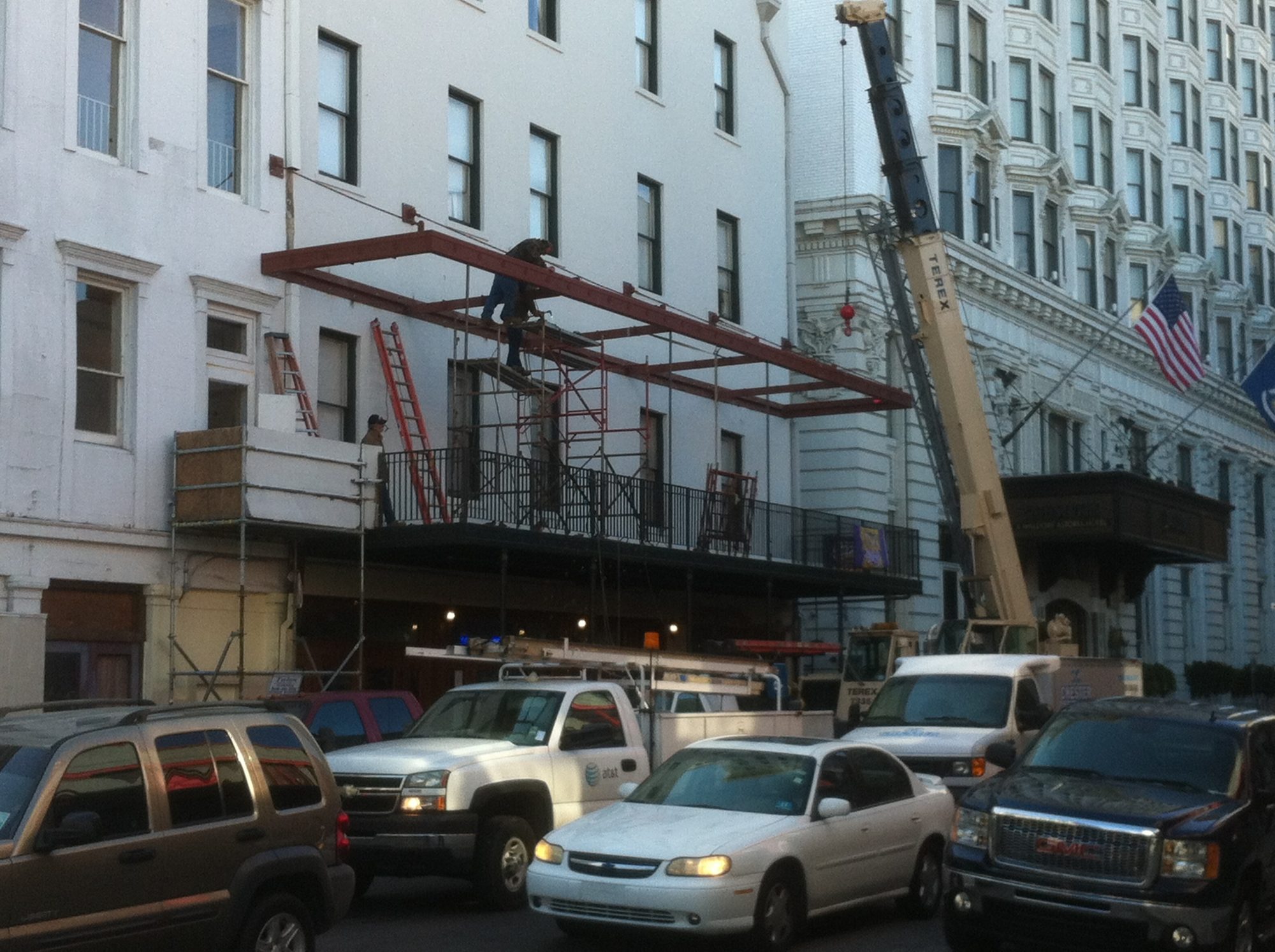

Three-story structural steel balconies with ornamental columns and railings, mounted on a historic French Quarter brick building.
Technical Challenge
Attaching new structural steel to an existing historic masonry building required careful coordination of anchor locations and load paths to avoid damaging the original brick facade while meeting modern code requirements for the cantilevered balcony framing.
Outcome

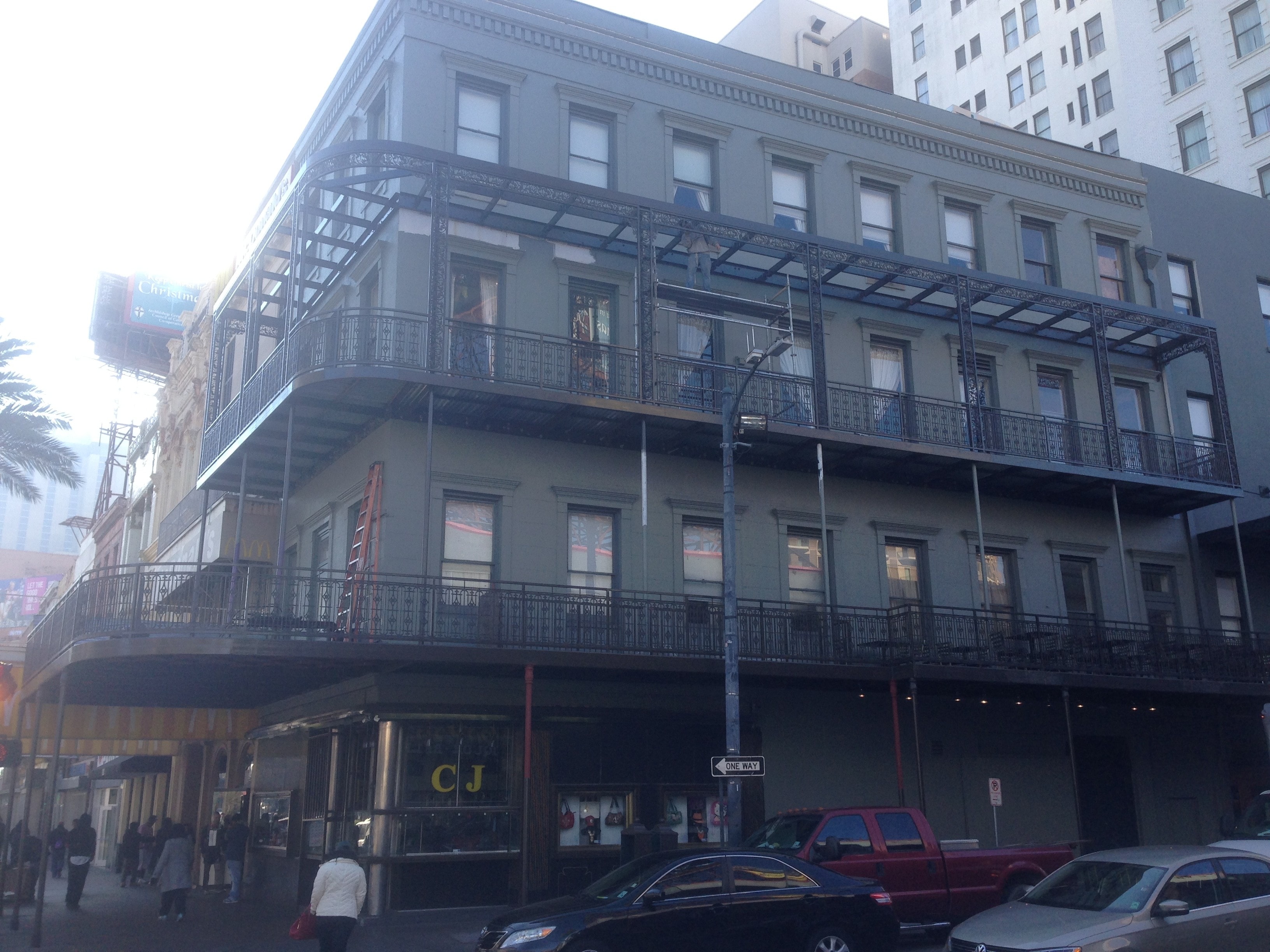

All three levels of structural steel balcony framing, ornamental columns, and railings fabricated and installed to specification, restoring the iconic French Quarter streetscape appearance while providing a safe, code-compliant structure.
Software & Tools
Tekla Structures
Project Gallery
9 items
Project Specifications
Steel Tonnage
Project Area
Stories / Height
3 stories
Shop Drawings
100+ drawings
Location
New Orleans, LA
Completed
2014
