Westville Oxidation Ditch
Project Scope

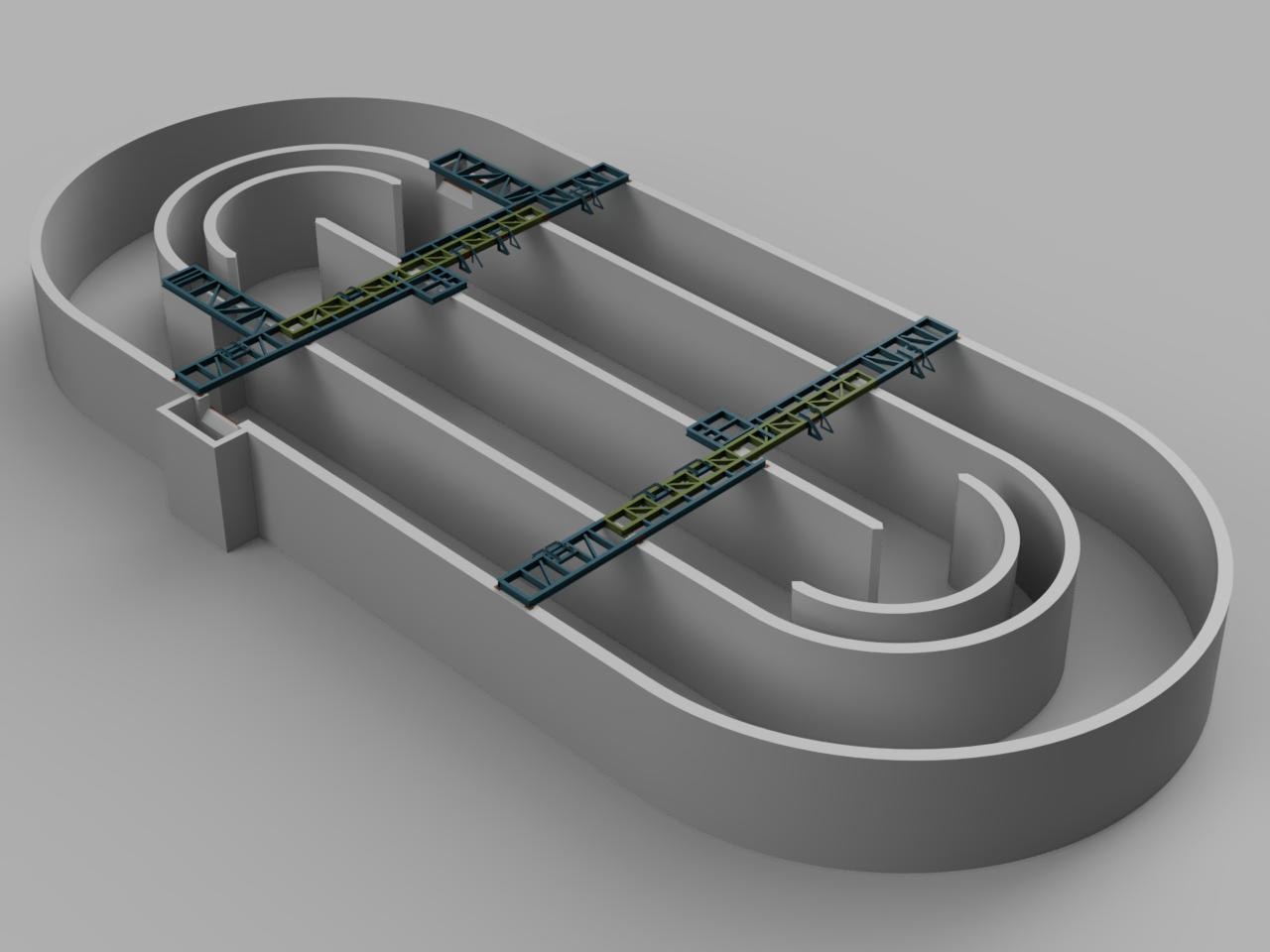

Structural steel to support equipment and provide access to a wastewater treatment oxidation ditch facility.
Technical Challenge
Detailing structural steel for a wastewater treatment environment required careful attention to corrosion protection and connection geometry to ensure safe, durable equipment support and access platforms in a chemically aggressive setting.
Outcome
Complete structural steel package delivered for equipment support and facility access, fabricated and erected to specification for the oxidation ditch treatment system.
Software & Tools
Tekla Structures

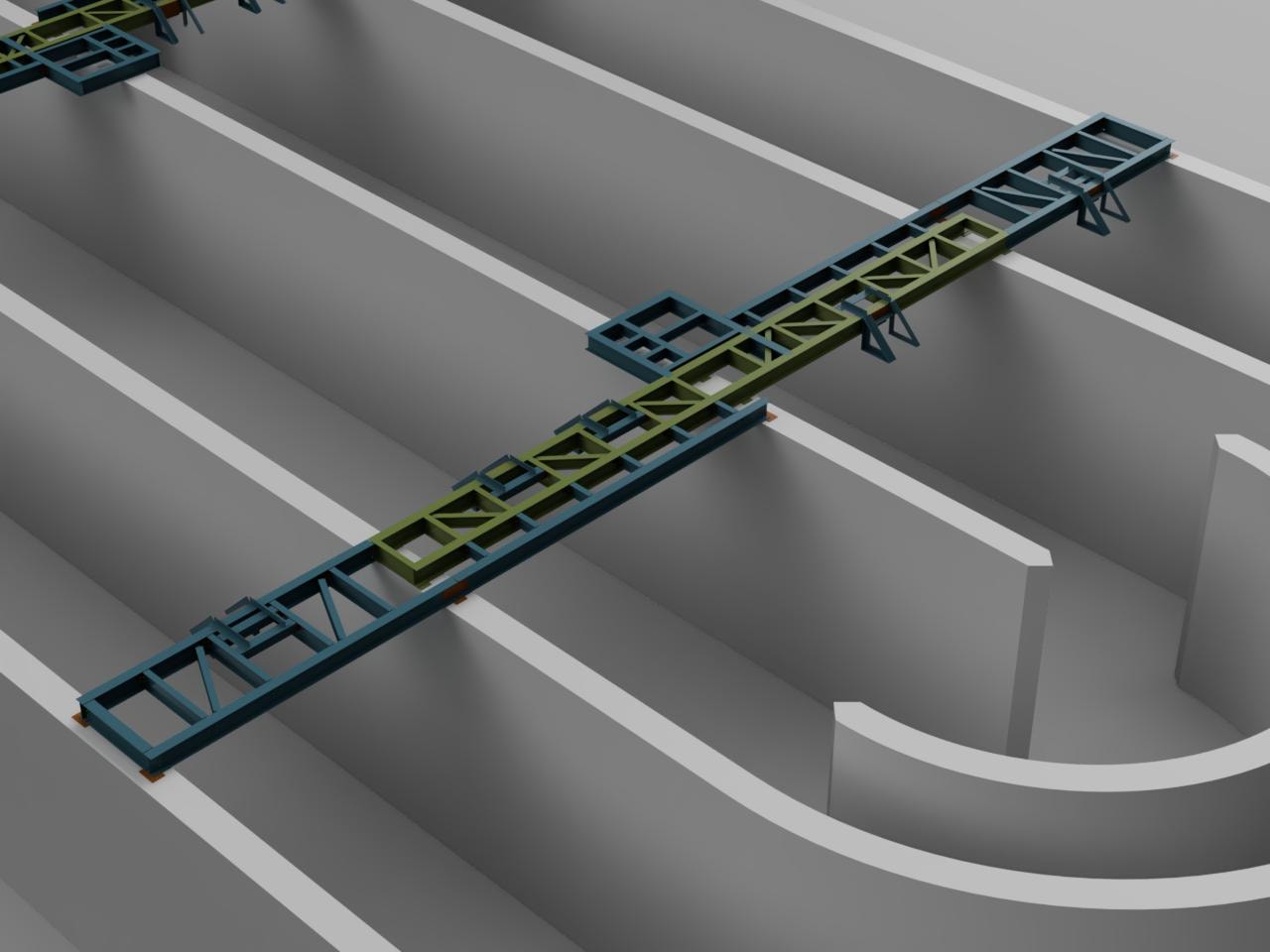

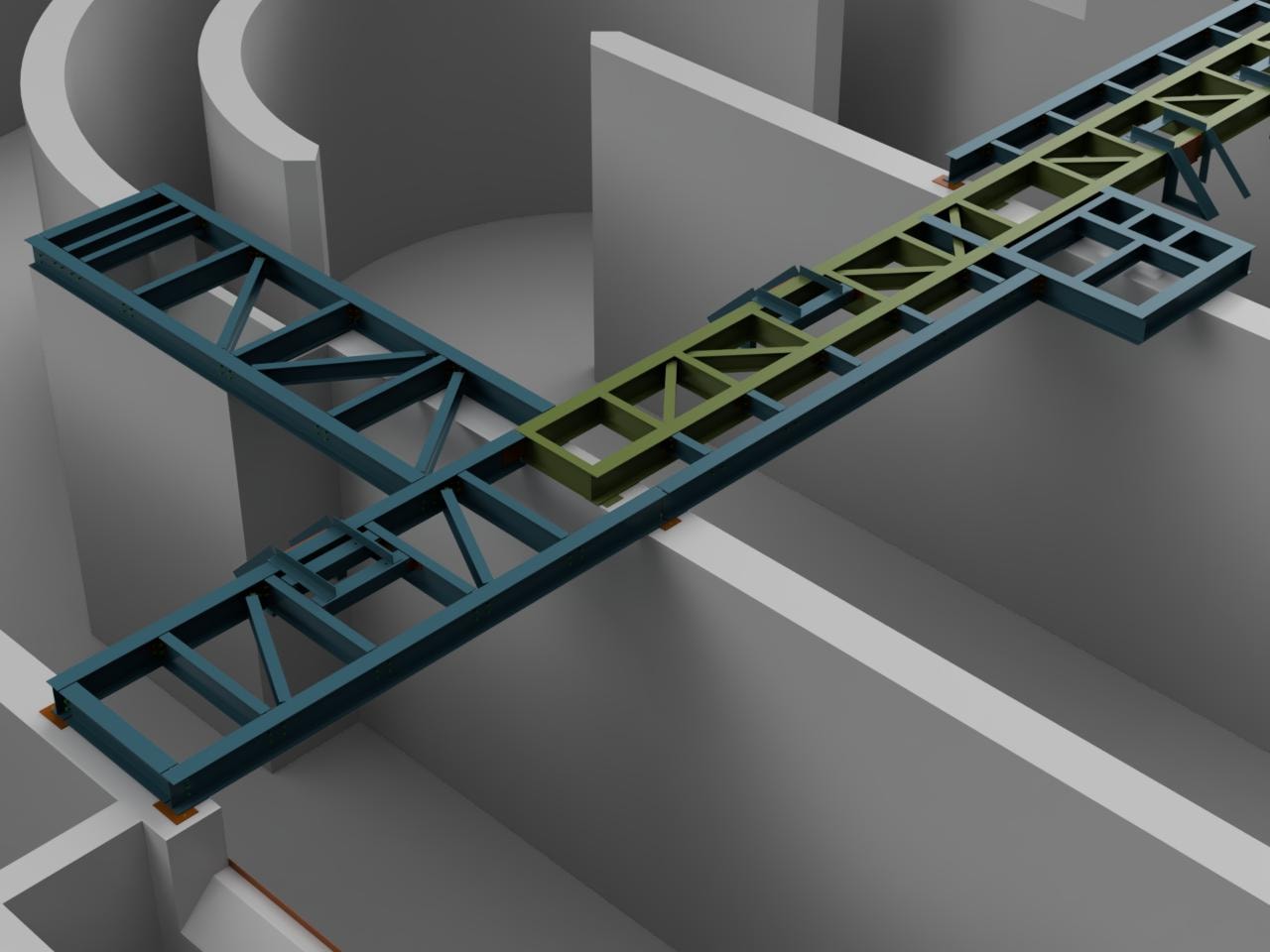

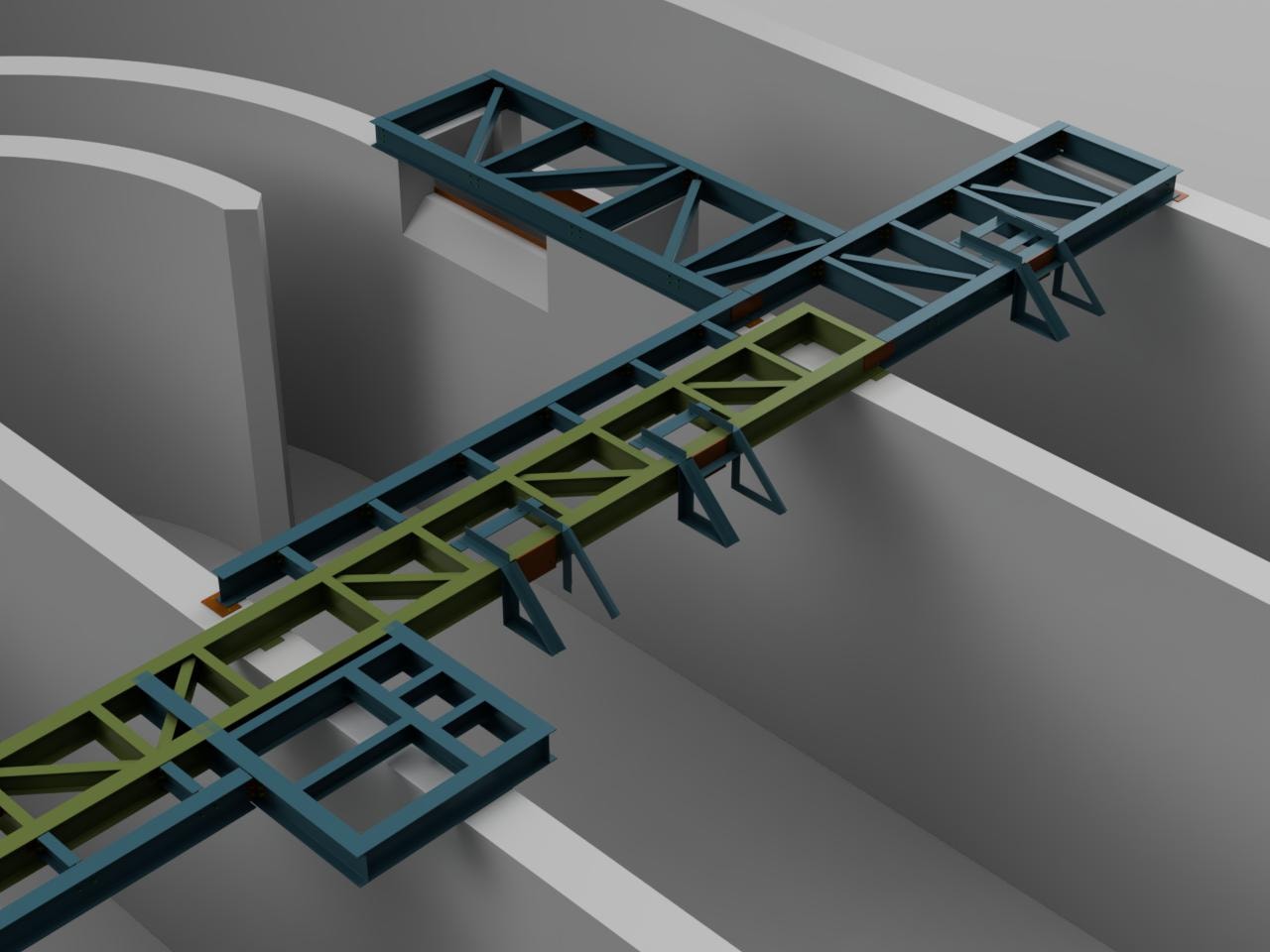

Project Gallery
4 items
Project Specifications
Steel Tonnage
Project Area
Stories / Height
1 story
Shop Drawings
Location
Ohio
Completed
2023
